Requirements

A successful 🚧 Gate Report requires a discussion of—

• The construction site layout

• The proposed gate location & traffic plan 🗺️


• The gate camera mast location

• Unexpected obstacles (parked cars, trees or bushes) 🌳


• Gate opening times ⏱️


• Expected traffic volume, vehicle types & speed

• Customer commitment to “Gate Report and its Limitations” document 📋


• Customer Expectations of Success: What is the purpose of this report? 📄


  • Overall objective

  • Accuracy requirements

    • False Positives ➕


    • False Negatives ➖


    • Do we need both In and Out or just one direction?

  • Region-specific issues

    • What region plates are expected?

    • Are there Plates on the front and rear of the vehicle? 🪪





Operations ⚙️

• Evercam Specified Hardware 📹: ANPR camera & Context Camera + Kits and Masts

• Mains Power. We avoid solar given the number of other things that must go right for a successful Gate Report.

• Location for the mast within a region not closer than 5m and/ or not more than 20m from the centrepoint of detection.

  • Not more than 45º to the left or right of the traffic centreline, and;

  • Between 0 and 45º vertical offset from the centre of detection (20 degrees is optimal). 📐


• If nighttime detection is required, suitable lighting is needed. 💡


Context Camera on a Single Mast 👁️‍🗨️

• Bullet Varifocal camera tends to give the best results.

• Try to have the ANPR centreline in the centre of the Bullet FoV.

• Height >6m with an angle of 10 to 45º to the centre-top of the vehicle.

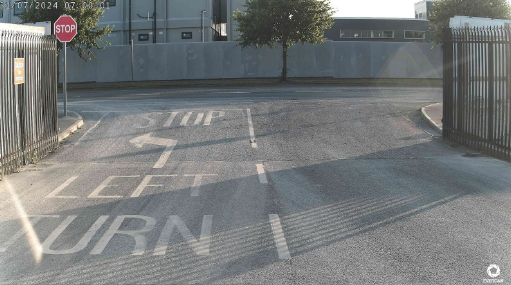

Context Camera on a Separate Mast 👁️‍🗨️

• The trailer side should be visible to distinguish between trucks that look similar on the front.

• The trailer top should be visible to show what is inside the truck. 🚚


• Clear & visible entrance with no occlusions (trees, cranes, people, containers, etc).

• Between 1.5 and 2 truck lengths should fit inside the ROI.
