Drawings
The Drawings module allows you to upload, geolocate and overlay site drawings directly onto a 2D satellite map so you can store and access them directly on the dashboard and Capture App. Once placed, these drawings help guide, visualize and contextualize 360 camera walks.
Upload a Drawing
Go to Drawings on the left-hand menu.
Select Create Drawing.
Enter Project Location
If you want to geolocate a site plan on 2D Map, ensure the 2D satellite Map Style is selected.
Enter Project Location using the project coordinates into the Location field then press Enter.
The 2D satellite Map view will appear, confirming the selected location is correct.
Otherwise, simply select the blank map style and overlay the site plan.
Add a Drawing file

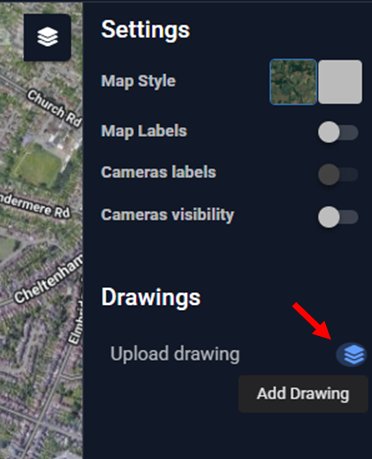

Click the Add Drawing icon.

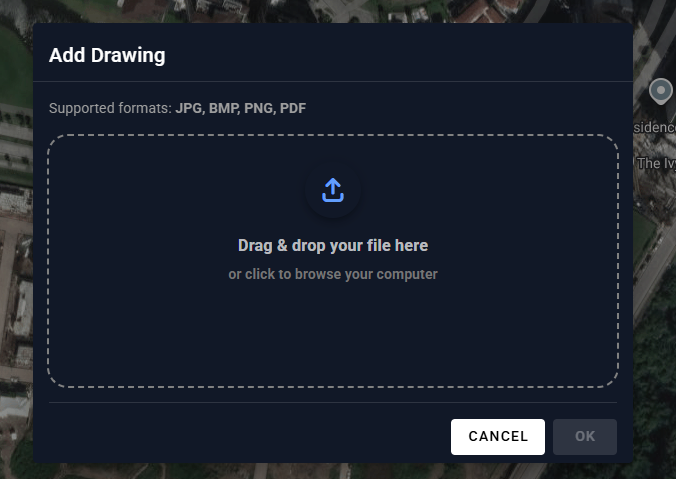

Select drawing file. (Supported formats include: JPG, BMP, PNG and PDF.)
Maximum file size:
15 MB for PDF
Maximum file dimension:
4000 px for JPG
The uploaded drawing will then appear over the 2D Map view.

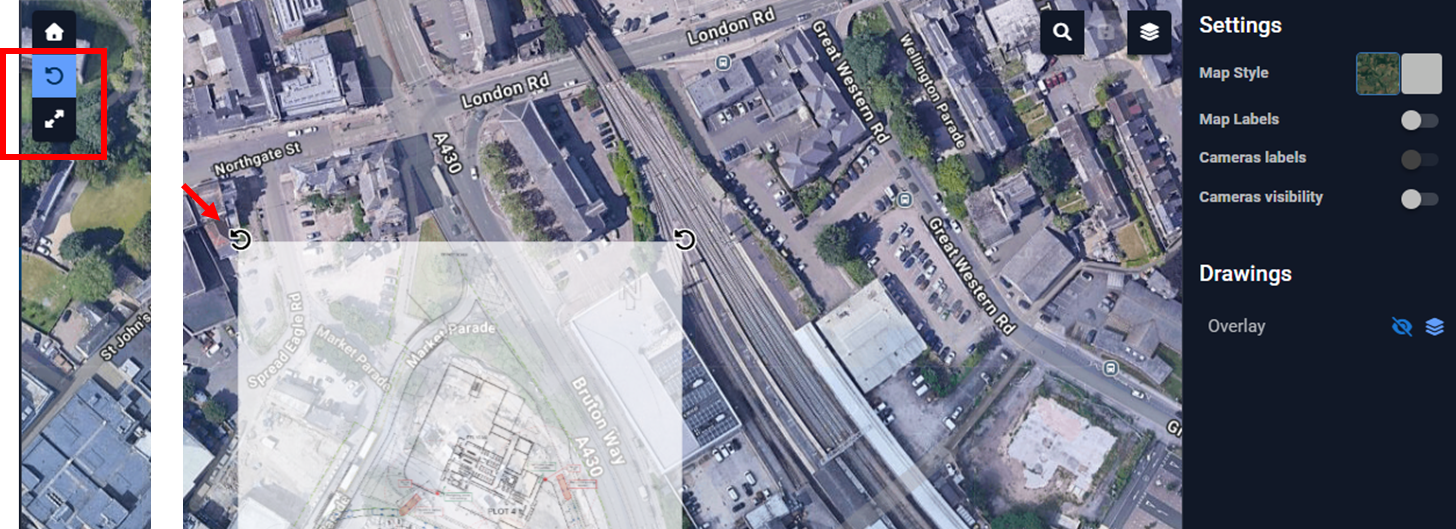

Align the Drawing
Use the following tools to align your drawing accurately:
Toggle Transparency On/ Off to orient the drawing with the satellite layout (i).
Click and drag any of the four red handles on the drawing to rotate or resize (ii).
Click and drag the left mouse button to move the image.
Save the Drawing
Once alignment is complete, click Save Drawing.

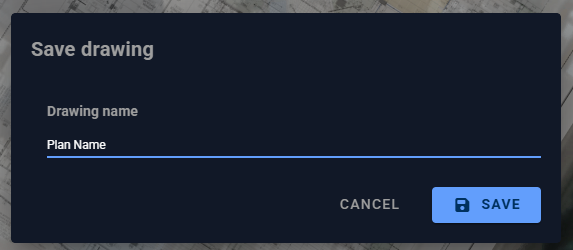

Enter a name for your drawing when prompted.

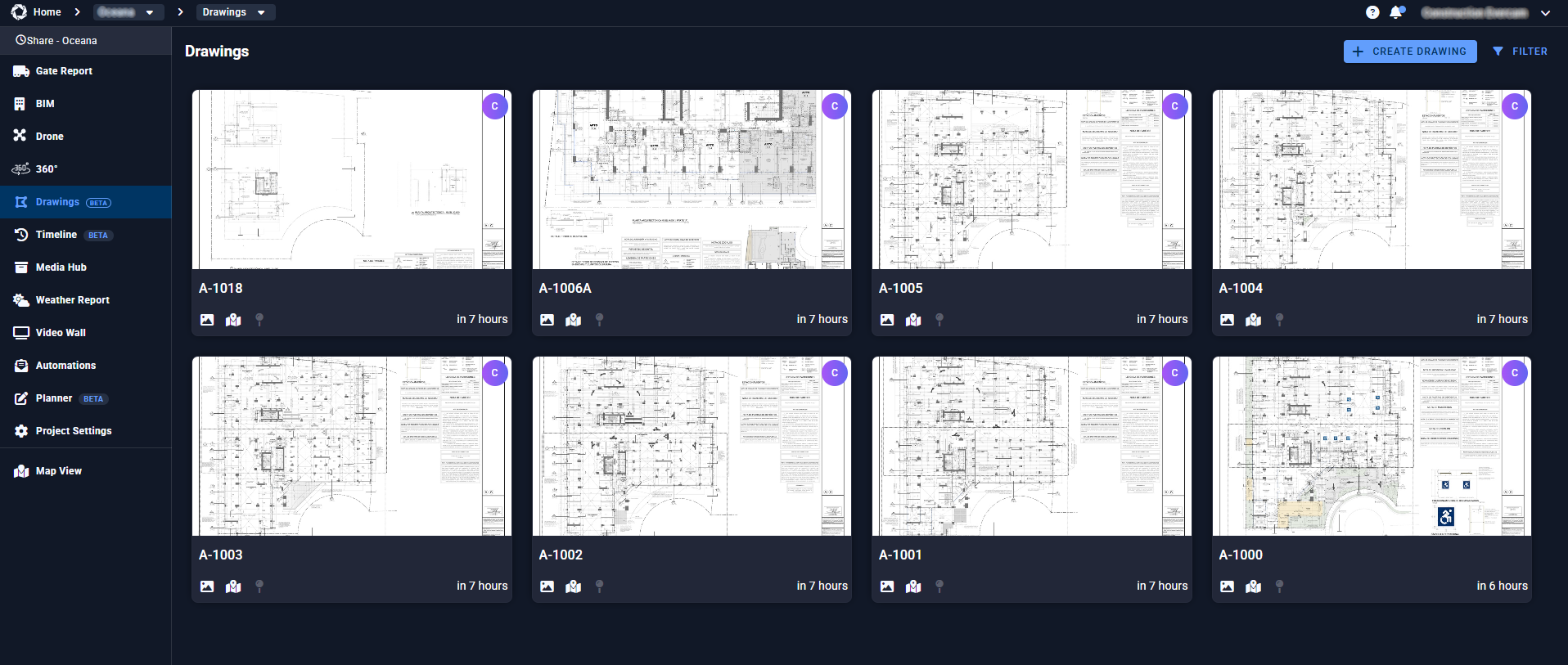

Drawings Gallery
Upon completion of the above steps, your drawing will now appear on the Drawings Gallery page.
You can also readily access these drawings from the Capture App before starting your walk.
Editing & renaming a Drawing
To edit or update an existing drawing, you can:
Upload a new version or;
2. Click on the drawing to update and choose a new drawing to upload in its place.
When a drawing is edited or changed, the current mini map path created using the previous plan will not change or move with the new plan.
You can also rename drawings with up 60 characters limit.
