03 Fixed-Position Camera System

System at a glance

Camera and imaging

• Maximum resolution: 3840 x 2160 (4K UHD).

• Motorised 2.7-13.5mm lens with automatic or manual focus.

• Day, night, automatic, customised and scheduled modes.

• Infrared illumination up to 70m under suitable conditions.

• Wide dynamic range and image controls for challenging lighting.

• PoE+ or 10-28V DC camera power support.

• Reference operating range: -40°C to +60°C and 0-95% relative humidity, non-condensing.

Current models: Milesight MS-8266 series

Connectivity and storage

•










  Teltonika RUTX11-series industrial router.

• 4G LTE Cat 6 with supported 3G fallback.

• Two external SIM slots with configurable failover.

• Gigabit Ethernet and dual-band Wi-Fi 5.

• 16 TB of installed local recording storage.

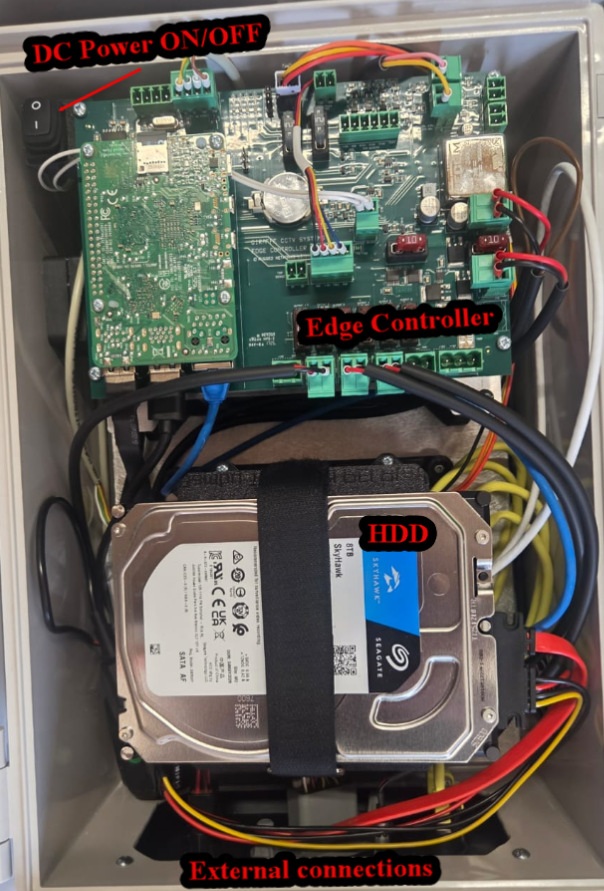

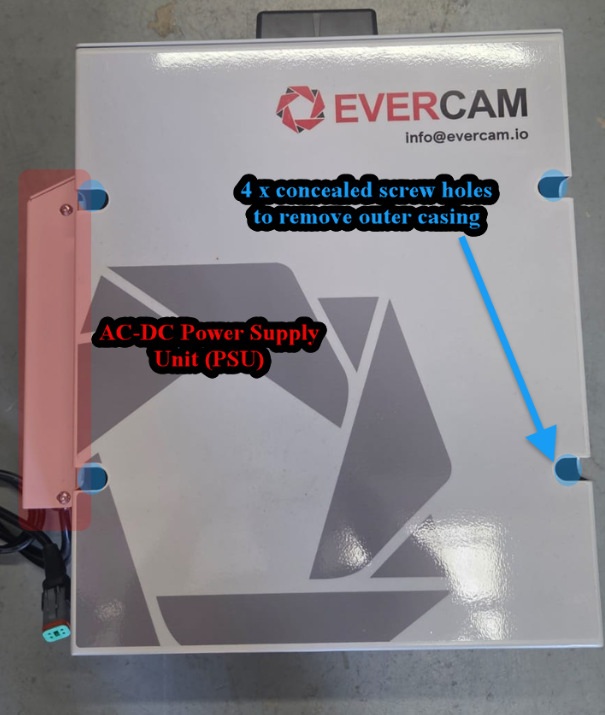

Control enclosure

The Operations reference describes the main enclosure as:

• Steel, light grey and IP65.

• 400 x 300 x 250mm.

• Approximately 15kg.

• Supplied with wall- and pole-mounting hardware.

• Secured by a metal access panel with security screws.

Pending verification: whether these values apply to every currently sold regional variant.

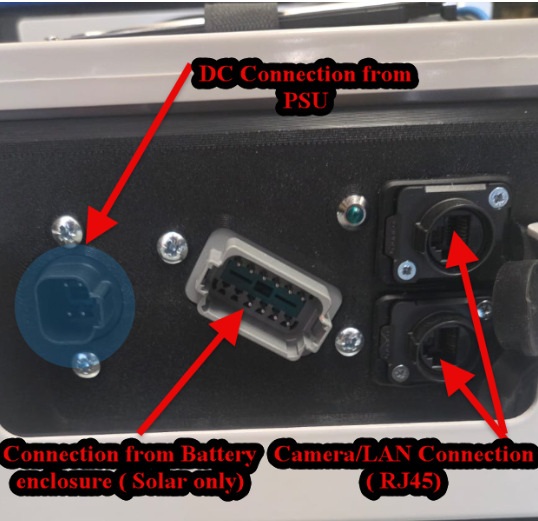

Connections

Provides a DC input, an external Battery Box connection and two PoE RJ45 ports. The two ports can support two cameras, or one camera and one wired network connection, subject to the approved configuration.

Use outdoor-rated CAT5e cable or better. Maximum camera-cable length is 90m.

Supply and commissioning

The kit is supplied assembled and preconfigured. Power the system and complete pre-installation checks with Evercam Support before site installation.
